FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor
735€
Product Code: 12761
MPN: T51
EAN: 6971863811284
Highlights
- Three 5" 800 x 480 Resolution Displays
- Slim All-Metal 2 RU Rackmount
- Three 3G-SDI, HDMI, Composite BNC I/O
- Three L/R RCA Audio Inputs

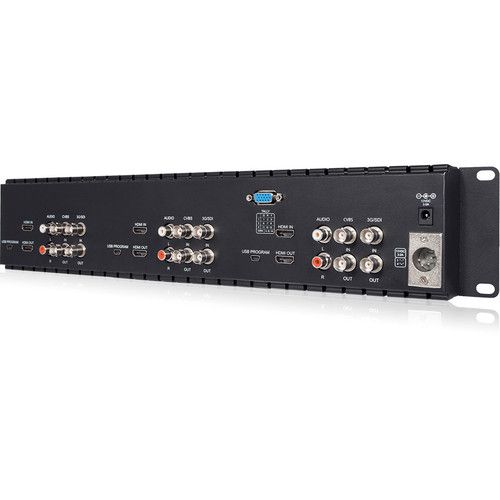

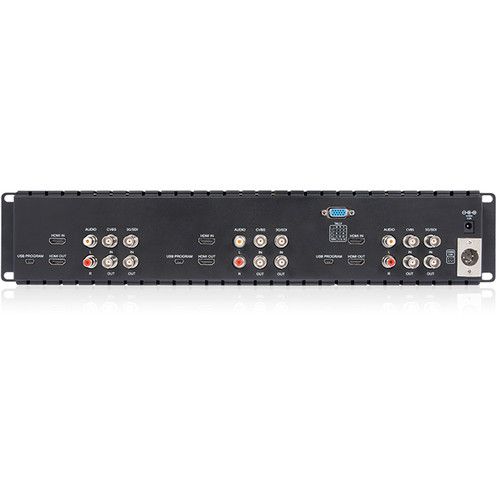

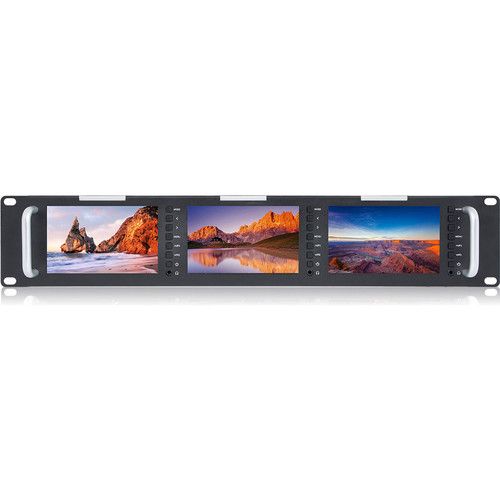

The FeelWorld T51 features three 5" 800 x 480 resolution displays in a slim, all-metal 2 RU rackmount. The rear panel has three sets of 3G-SDI, HDMI, and composite BNC inputs and outputs, three sets of RCA audio inputs, and a single tally port. A three-color tally light is provided on top of each display on the front panel, and a headphone output is available per display for audio monitoring. For power, the T51 has both a DC barrel input and 4-pin XLR input, and a power adapter is included for the barrel input. Monitoring features include peaking, pixel-to-pixel, zoom all, and custom color temperature.
Key Features
- Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips
- 800 x 480 resolution
- Three 3G-SDI inputs and outputs
- Three HDMI inputs and outputs
- Three composite BNC inputs and outputs
- Three L/R RCA audio inputs
- Tally port
- Three headphone outputs

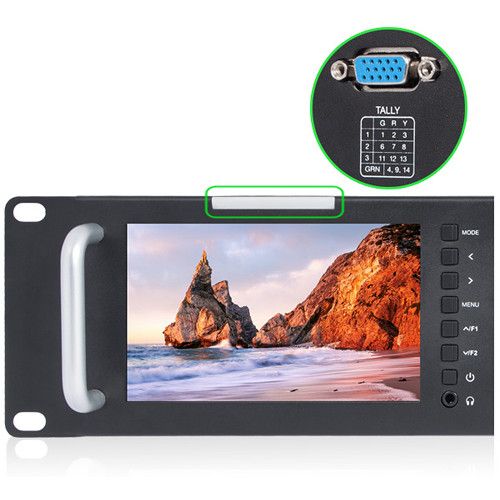

- Three-color tally light on top of each display
- 500 cd/m² brightness
- 500:1 contrast
- 140/120° viewing angle

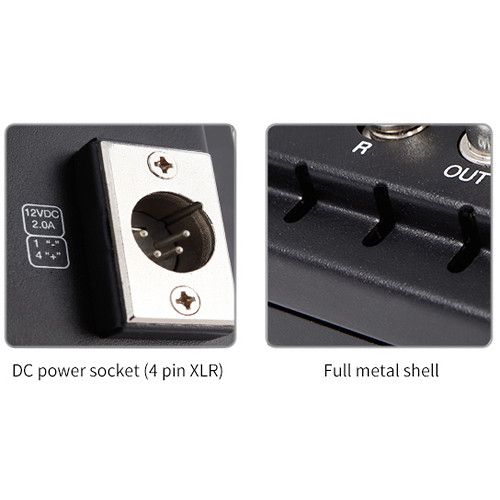

- DC barrel and 4-pin XLR power inputs
- DC power adapter included
Monitoring Features
- Peaking focus assist
- Check field (red, green, blue, mono)
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, horizontal/vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Custom color temperature
| Panel Type | TFT LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 800 x 480 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 140° (70/7) |
| Vertical: 120° (50/70) | |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 500:01:00 |
| Dot Pitch | 0.045 x 0.135 mm |
|
I/O
|
|
| Video | 3 x BNC (HD-SDI/3G-SDI/SD-SDI) Input |
| 3 x HDMI Type A Input | |
| 3 x BNC (Composite) Input | |
| 3 x BNC (HD-SDI/3G-SDI/SD-SDI) Output | |
| 3 x HDMI Type A Output | |
| 3 x BNC (Composite) Output | |
| Audio | 3 x 2RCA Input |
| 3 x 1/8" / 3.5 mm Headphone Output | |
| Built-In Speaker | None |
| Power | 1 x Barrel (3 A / 12 VDC) Input |
| 1 x 4-Pin XLR (3 A / 12 VDC) Input | |
| Other I/O | 1 x Tally (DE-15/DB-15) |
| 3 x Mini-USB | |
| Card Slot | None |
|
Format Support
|
|
| Video Format | SDI |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 576i | |
| 480i | |
| HDMI | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 24/23.98 | |
| 1080i: 60/59.94/50 | |
| 576p | |
| 480p | |
| 576i | |
| 480i | |
|
Power
|
|
| DC Input Power | 9 to 24 VDC |
| Battery Type | None |
| Power Consumption | 25 W (Maximum) |
|
Mounting
|
|
| Rack Form Factor | 2 RU |
|
Environmental
|
|
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
|
General
|
|
| Dimensions | 19 x 3.5 x 1.3" / 48.3 x 8.8 x 3.4 cm |
| Weight | 3.46 lb / 1.57 kg |
