FeelWorld LUT5 5.5" Monitor

267€


Product Code: 13142

Highlights
  • 5.5" 1920 x 1080 Touchscreen Display
  • 4K HDMI In and Out
  • Wide 160° Viewing Angle
  • 1000:1 Contrast, 3000 cd/m² Brightness
Available (1-2 months)
2 Year Warranty
The product has been successfully added to the shopping cart

Accessories for FeelWorld LUT5 5.5" Monitor

    26€
      19€
        25€
          38€
            35€
              30€
                35€
                  50€
                    42€
                      18€
                        29€
                          25€
                            21€

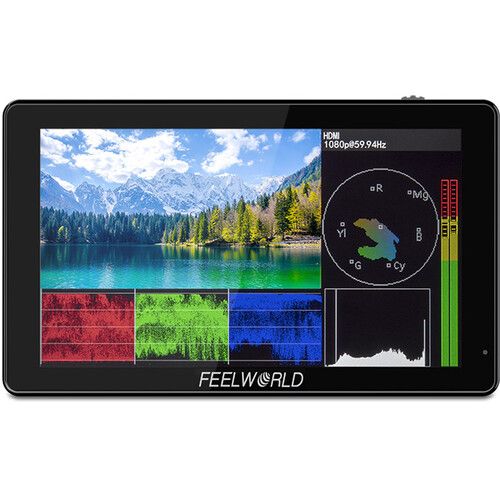

                            Upgrade your on-camera viewing experience while shooting in the field to a Full HD touchscreen monitor with the FeelWorld LUT5, a compact 5.5" IPS monitor outfitted with 3000 cd/m² auto-dimming brightness and a multitude of video assist functions. The LUT5 supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. A single 1/4"-20 thread on the bottom of the monitor allows it to be attached to the included hot shoe mount and integrated into your run-and-gun setup.

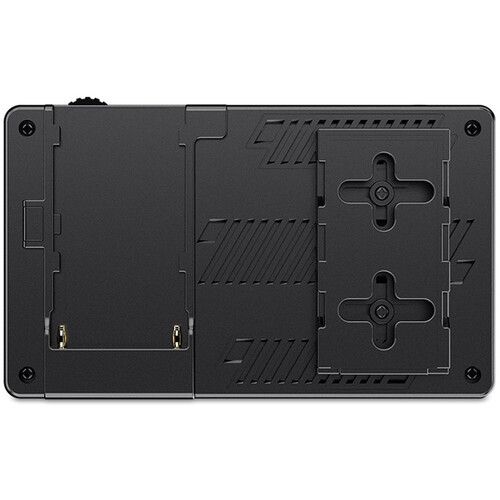

                            The monitor boasts 1000:1 contrast and a built-in cooling system, as well as an F970 battery plate on the back panel. The operating system of the LUT5 includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 50 custom 3D LUTs can be loaded into the interface using the SD card slot for intuitive color calibration. An 8 VDC output can distribute additional power to your DSLR or mirrorless camera to extend its runtime in the field.

                            Main Features

                            • Full HD 1920 x 1080 resolution
                            • 368 ppi pixel density prevents the eye from defining individual pixels
                            • 160° viewing angle ensures clear image as operator shifts position
                            • Easy touchscreen operation with shortcut keys

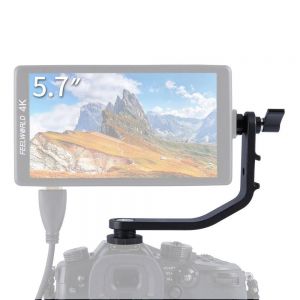

                            • Mini hot shoe mount included for easy installation
                            • Ambient light sensor for auto-dimming
                            • Built-in cooling system with multidimensional holes and low-power-consumption fan
                            • 8 VDC power out to your DSLR or mirrorless camera
                            • 3.5mm headphone output jack

                            Battery Compatibility

                            • Compatible with the following Sony NP-F batteries: F970, F960, F950, F930, F770, F750, F730, F570, F550, F530
                            • Working time with battery up to 2.5 hours

                            3D LUTs

                            • Load up to 50 custom files to the monitor using the SD card slot
                            • Makes color calibration of previous shooting more intuitive

                            Video Assist Functions

                            • Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
                            • Audio meter monitoring
                            • Center marker
                            • Check field (red, green, blue, mono)
                            • False color
                            • Histogram (brightness, RGB)
                            • Image flip
                            • Nine-grid
                            • Peaking focus assist (color switch capabilities)
                            • Pixel-to-pixel
                            • Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
                            • Safety mode (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1)
                            • Waveform (RGB, YUV, Y)
                            • Zebra
                            • Zoom (100-300%)
                            Panel Type OLED
                            Display Size 5.5" / 14.0 cm
                            Resolution 1920 x 1080
                            Aspect Ratio 16:09
                            Viewing Angle Horizontal: 160°
                            Vertical: 160°
                            Touchscreen Yes
                            Maximum Brightness 3000 cd/m2
                            Contrast Ratio ########
                            Dot Pitch 0.069 x 0.069 mm
                            HDR Compatibility None
                            Pixels Per Inch (ppi) 368 ppi
                            Real-Time LUT Monitoring HDR
                            Image Controls Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

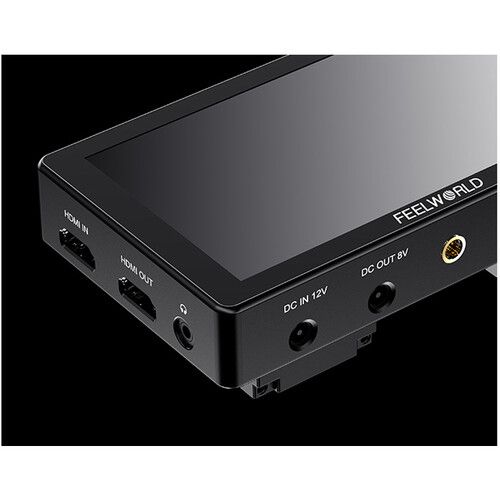

                            I/O

                            Video 1 x HDMI Type A Input
                            1 x HDMI Type A Output
                            HDCP Support No
                            Embedded Audio HDMI
                            Audio 1 x 1/8" / 3.5 mm Output
                            Built-In Speaker None
                            Power I/O 1 x Barrel (24 VDC) Output
                            Other I/O None
                            Media/Memory Card Slot Single Slot: SD/SDHC
                            Wi-Fi None
                            Format Support
                            Video Format HDMI
                            UHD 4K: 30/29.97/25/24/23.98
                            DCI 4K: 24
                            1080p: 60/59.94/50/30/29.97/25/24/23.98
                            1080i: 60/59.94/50
                            720p: 60/59.94/50/30/29.97/25/24/23.98
                            Power

                            DC Input Power 7 to 24 VDC
                            Battery Type 1 x L-Series
                            Power Consumption 20 W
                            Mounting
                            Mounting 1 x 1/4"-20 Female
                            Environmental
                            Operating Temperature -4 to 158°F / -20 to 70°C
                            Storage Temperature -22 to 176°F / -30 to 80°C
                            General

                            Dimensions 5.6 x 3.4 x 1.1" / 142 x 86 x 28 mm
                            Weight 9.5 oz / 270 g
