FeelWorld F7 Plus
249€
Product Code: 15029
Available (1-2 months)
2 Year Warranty
The product has been successfully added to the shopping cart
Accessories for FeelWorld F7 Plus
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI 2.0 Input |
| 1x HDMI 2.0 Output | |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only] |
| Video Format | HDMI |
| DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p | |
| 576i | |
| 480p | |
| 480i | |
| Battery Type | 1x L-Series |
| Power Consumption | 15 W |
| Mounting | 1x Anti-Twist 1/4"-20 Female (Top) |
| 1x Anti-Twist 1/4"-20 Female (Right) | |
| 1x Anti-Twist 1/4"-20 Female (Bottom) | |
|
Display
|
|
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) |
| Vertical: 160° (80/80) | |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Contrast Ratio | ######## |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 323 ppi |
| Color Gamut | 100% Rec. 709 |

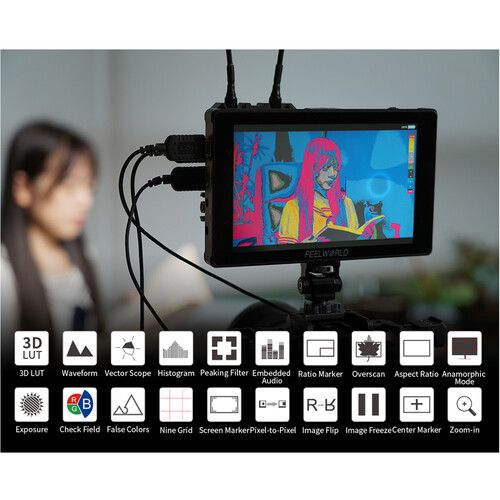

| Image Controls | Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform |
|
Inputs / Outputs
|
|

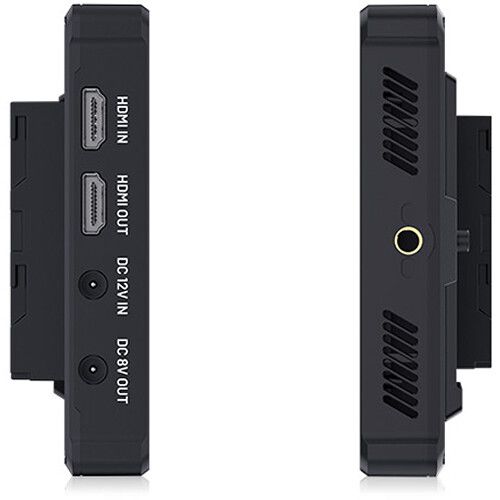

| Video I/O | 1x HDMI 2.0 Input |
| 1x HDMI 2.0 Output | |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 5.5 mm (12 VDC) Input |
| 1x USB-C (2 A / 5 VDC) Input | |
| 1x Barrel 5.5 mm (8 VDC) Output | |
| Other I/O | No |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only] |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI |
| DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p | |
| 576i | |
| 480p | |
| 480i | |
|
Power
|
|
| Input Power | 7 to 24 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 15 W |
|
Mounting
|
|
| Mounting | 1x Anti-Twist 1/4"-20 Female (Top) |
| 1x Anti-Twist 1/4"-20 Female (Right) | |
| 1x Anti-Twist 1/4"-20 Female (Bottom) | |
|
General
|
|
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Storage Conditions | -22 to 140°F / -30 to 60°C |
| Dimensions | 7.3 x 4.6 x 0.8" / 186 x 117 x 21 mm |
| Unit Weight | 389gr |
