FeelWorld F6 Plus V2 6" 4K HDMI Monitor
162€
Product Code: 13717
MPN: F6PLUSV2
EAN: 6971863817187
Highlights
- Touchscreen 1920 x 1080 Display
- Screen Size 6"
- Up to DCI 4K HDMI Input; HDMI Output
- LUT Support via SD Card Slot
- DC, USB, L-Series/LP-E6 Power Support
- 12 VDC input , 8 VDC output for optional dummy battery cables, USB Type-C port for power banks (AC adapters and batteries not included)
Accessories for FeelWorld F6 Plus V2 6" 4K HDMI Monitor

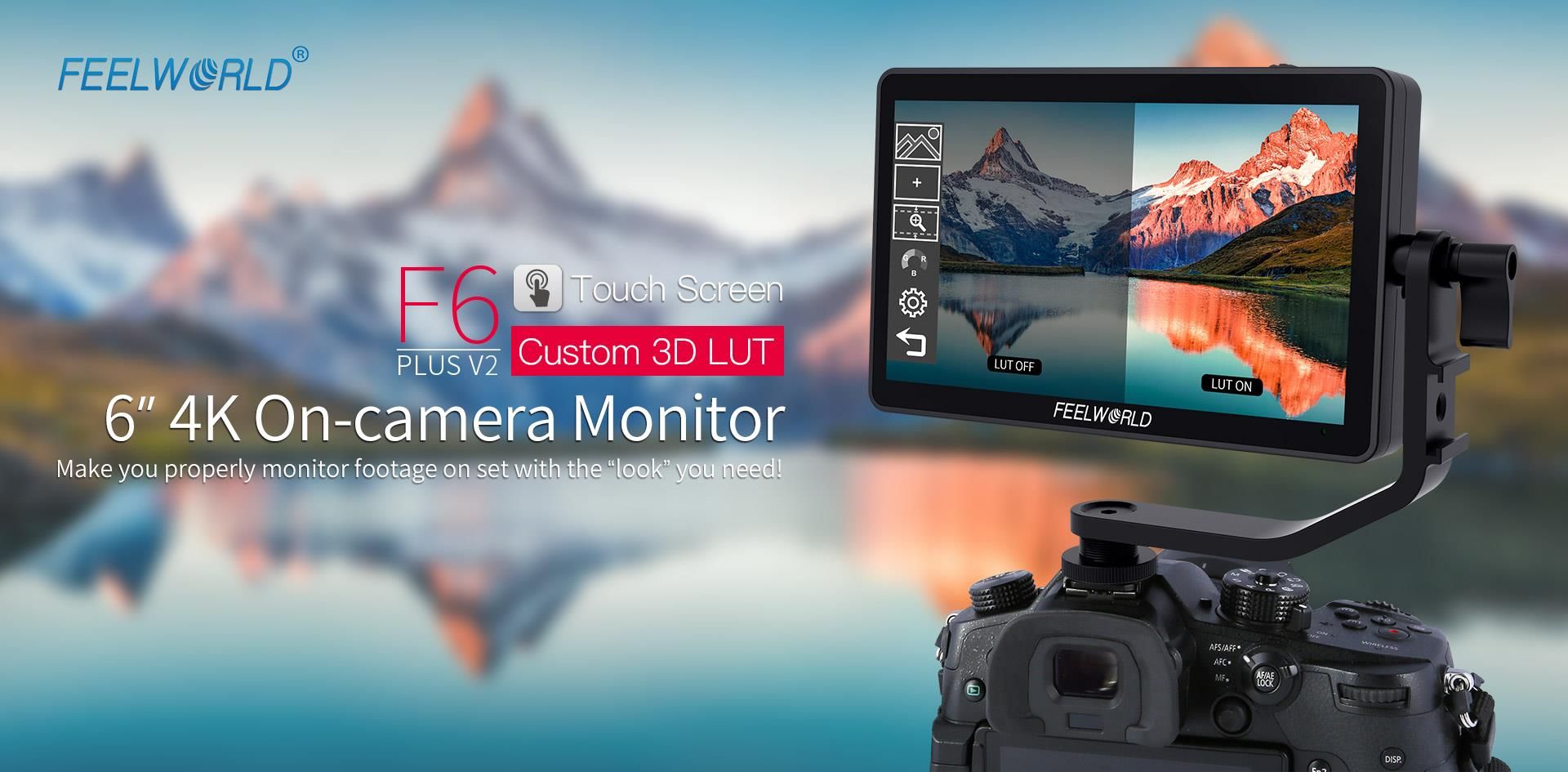

The FeelWorld F6 Plus 6" 4K HDMI Monitor features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². It supports HDMI input signals up to DCI 4K24 and UHD 4K30, and it provides an HDMI output for connecting to wireless transmitters, larger on-set monitors, and other devices. LUTs in .cube format are supported via an SD card slot to view S-Log2, S-Log3, V-Log, and Log-C profiles in Rec. 709 color space.

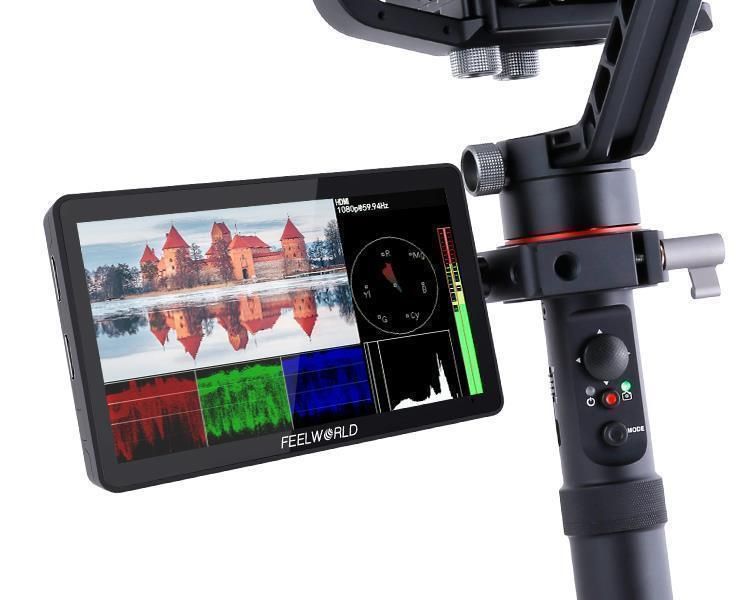

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

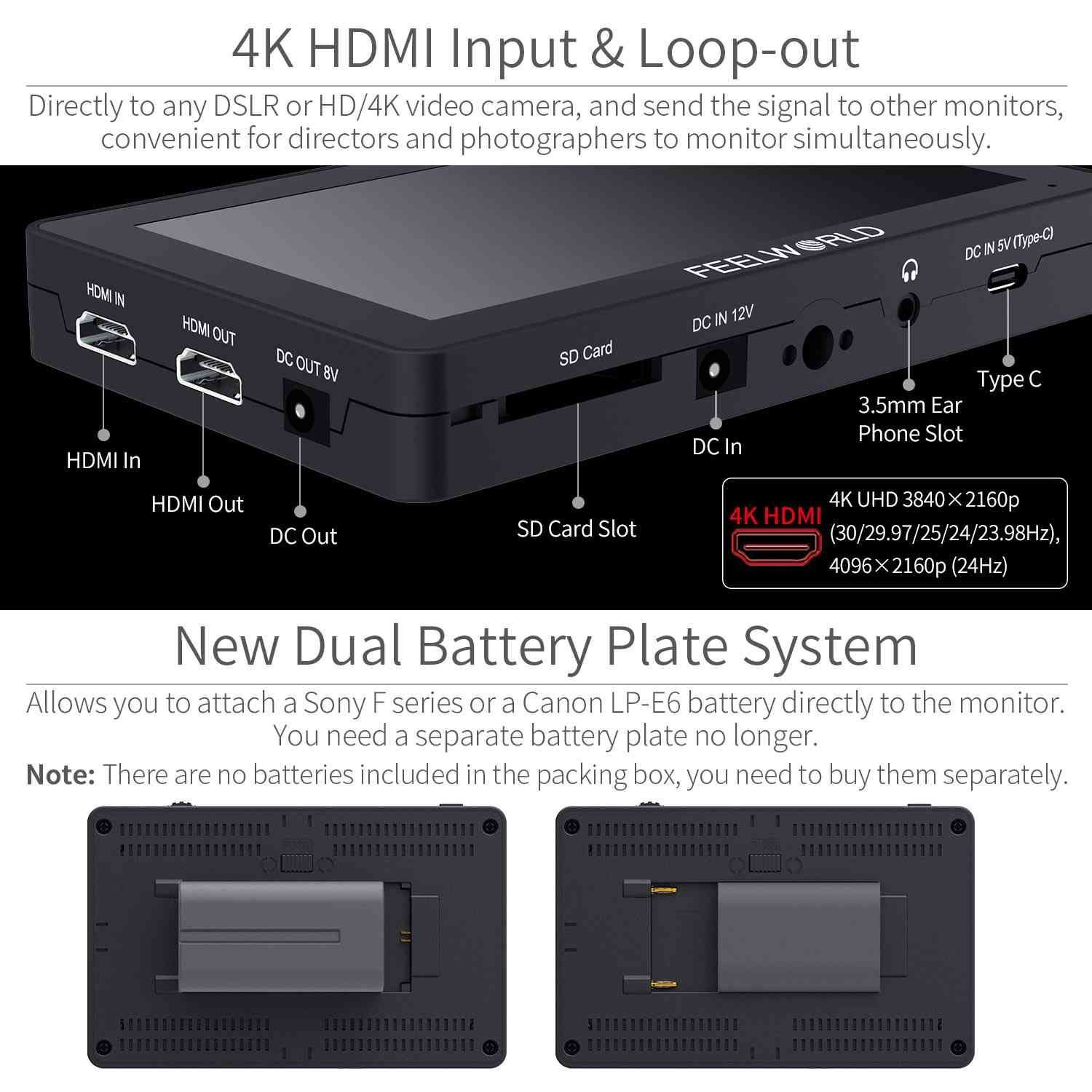

Multiple power options 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, a USB Type-C port for power banks, and a battery slot that accepts an L-series battery on one side or an LP-E6 battery on the other, interchangeably. A 1/4"-20 mounting thread is provided on the bottom, top, and right side.
Key Features
- Touchscreen display with a 1920 x 1080 resolution
- 500 cd/m² brightness
- HDMI input signals up to DCI 4K24 and UHD 4K30
- HDR function
- HDMI output for connecting to wireless transmitters, etc.
- SD card slot for uploading LUTs to view S-Log2, S-Log3, V-Log, and Log-C profiles in Rec 709 color space
- 12 VDC input (not include), 8 VDC output for optional dummy battery cables, USB Type-C port for power banks
- Single battery slot accepts an L-series battery on one side or an LP-E6 battery on the other
- Three 1/4"-20 mounting threads
Package Include
Standard Accessories
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Operation Manual
Software Features
- Parade (RGB, YUV, Y)
- Vectorscope
- Histogram
- Peaking focus assist
- False colors
- Zebra exposure (1 to 100%)
- Scan Mode (underscan, overscan)
- Zoom (100 to 300%)
- Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x)
- Pixel to pixel
- Nine gird
- Center marker
- Safety marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
- Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black, yellow)
- Check field (red, green, blue, gray)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
| Panel Type | IPS-Type LCD |
| Display Size | 6" |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 160° (80/80) |
| Vertical: 160° (80/80) | |
| Touchscreen | Yes |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.0639 x 0.0213 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 400 ppi |
|
I/O
|
|
| Video | 1 x HDMI Type A Input |
| 1 x HDMI Type A Output | |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x Barrel (12 VDC) Input |
| 1 x Barrel (8 VDC) Output | |
| 1 x USB Type-C (5 VDC) Input | |
| Wi-Fi | None |
|
Format Support
|
|
| Video Format | HDMI |
| DCI 4K 4096×2160p: 24 | |
| UHD 4K 3840×2160p : 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 1080PsF: 24/23.98 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 576p | |
| 576i | |
| 480p | |
| 480i | |
|
Power
|
|
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6, L-Series |
| Power Consumption | 9 W |
|
Mounting
|
|
| Mounting | 3 x 1/4"-20 Female |
|
Environmental
|
|
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
