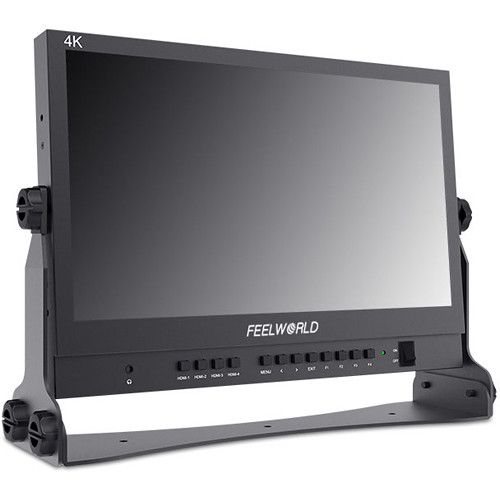

FeelWorld ATEM156 4K 15.6" Quad-Split Monitor With 4 x HDMI I/O For Switchers
509€
Product Code: 13395
Highlights
- Quad DCI 4K24/UHD 4K30 Input & Loop Out
- Multiview for Switchers like ATEM Mini
- Quad/Dual/Single View with PiP
- 1920 x 1080 Resolution, 800:1 Contrast

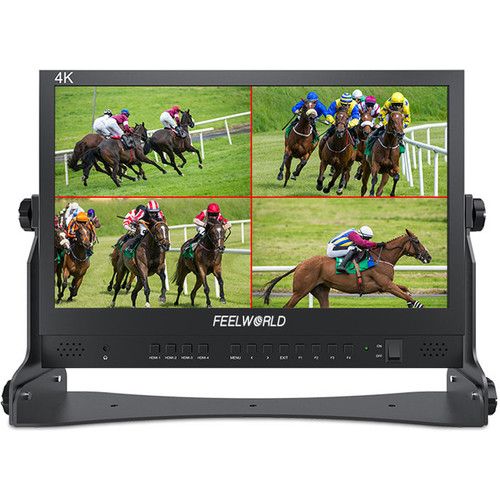

The FeelWorld ATEM156 can be used as a companion to switchers that don't have a multiview function, such as the Blackmagic ATEM Mini switcher. It allows you to view four DCI/UHD 4K HDMI signals in a quad split. Four HDMI loop outputs let you connect your four signals to the switcher. You can move any signal to any window in the quad split. A PiP image can also be displayed in each window. Alternatively, a dual view or single image can be displayed on the screen, also supporting Picture-in-Picture. Dual view can be set up in a vertical or horizontal split, and you can set one side of the split to be larger than the other.

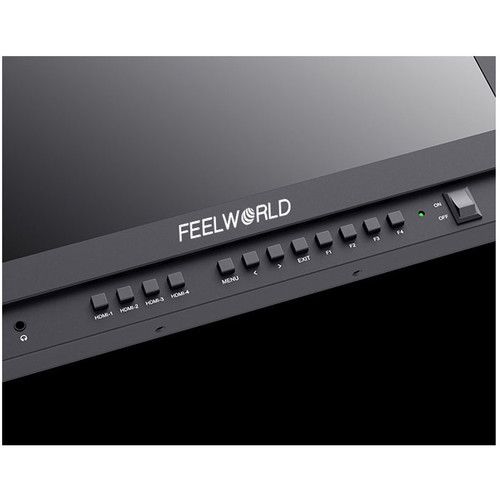

The ATEM156 features a 15.6" IPS display with a 1920 x 1080 resolution, 250 cd/m² brightness, and 170° viewing angle. Software features, such as peaking and false color, additionally let you analyze each image. A 3.5mm stereo headphone jack on the front panel allows for audio monitoring.
| Panel Type | IPS-Type LCD |
| Display Size | 15.6" / 39.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 170° |
| Vertical: 170° | |
| Touchscreen | No |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 800:01:00 |
| Dot Pitch | 0.17925 x 0.17925 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 141 ppi |
|
I/O
|
|

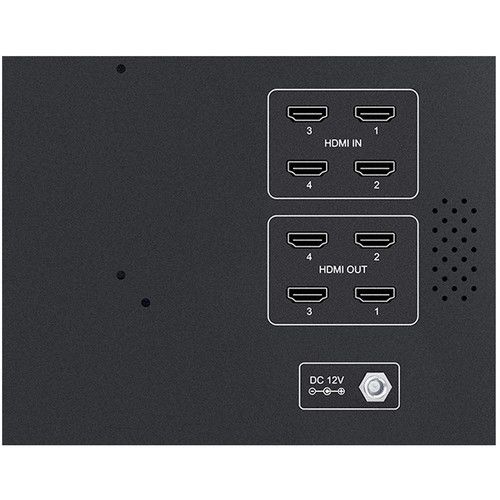

| Video | 4 x HDMI Type A Input |
| 4 x HDMI Type A Output | |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
|
Format Support
|
|
| Video Format | HDMI |
| DCI 4K: 24 | |
| UHD 4K: 30/25/24 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 576p | |
| 480p | |
| Gamma Curve | Rec709 |
|
Power
|
|
| DC Input Power | 12 to 24 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 12 W |
|
Environmental
|
|
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
|
General
|
|
| Material of Construction | Aluminum |
| Dimensions | 14.6 x 10.3 x 1.1" / 372 x 262 x 28.4 mm, Excluding Stand |
| Weight | 3.5 lb / 1.6 kg, Excluding Stand |
