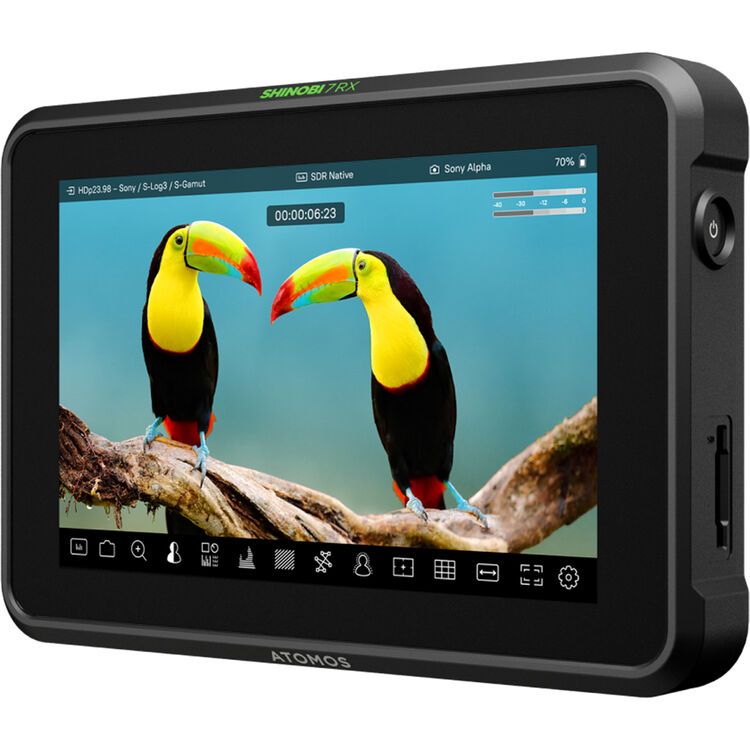

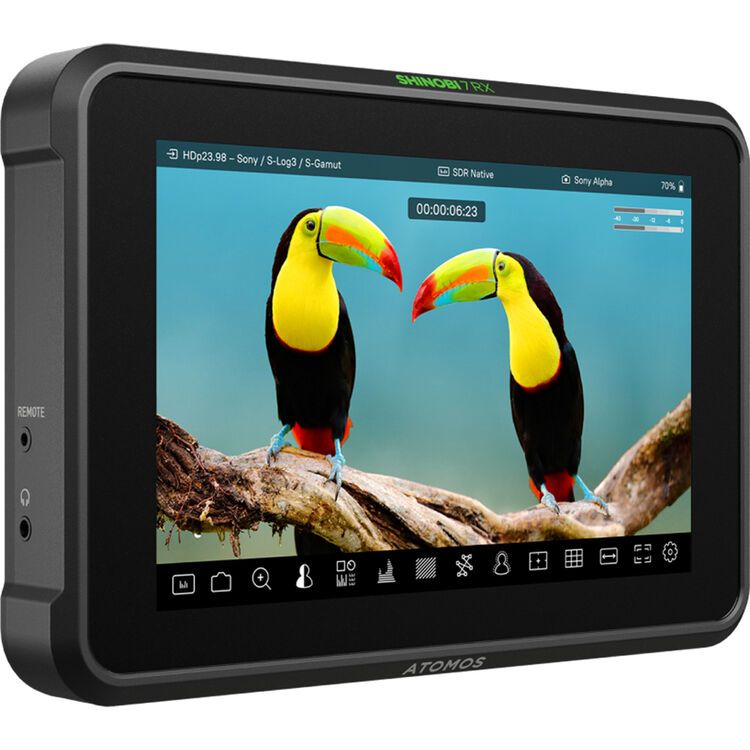

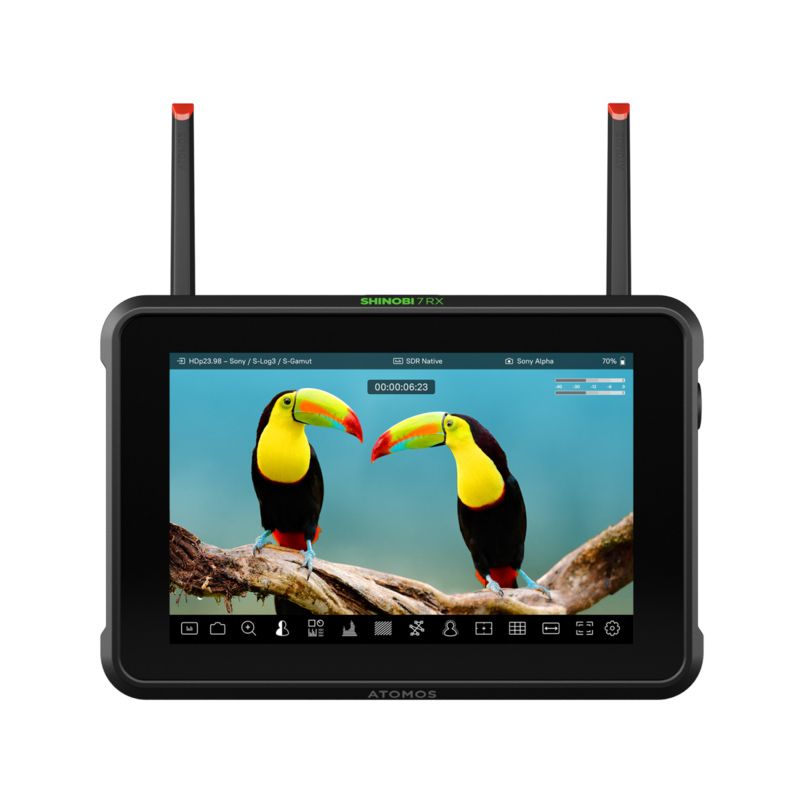

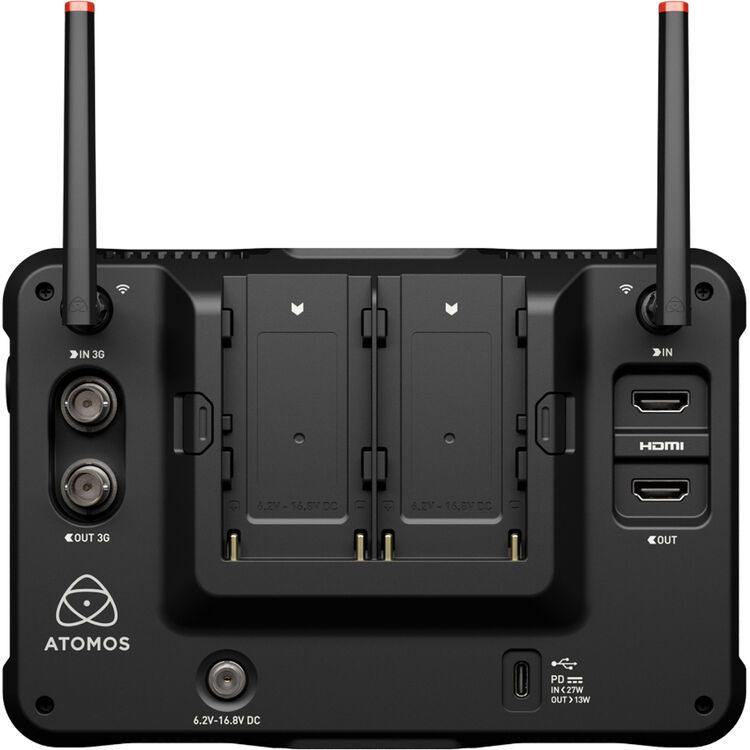

Atomos Shinobi 7 RX HDMI/SDI Monitor & Receiver
829€
Product Code: 15584
MPN: ATOMSHBRX1
EAN: 0814164023351
Immediately Available (1-3 working days) - Immediate collection from the store
2 Year Warranty
The product has been successfully added to the shopping cart
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Antenna I/O | 2x RP-SMA |
| Video I/O | 1x HDMI 2.0 Input |
| 1x BNC (3G-SDI) Input | |
| 1x HDMI 2.0 Loop Output | |
| 1x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI: 8-Channel |
| SDI: 12-Channel | |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input |
| 1x 1/8" / 3.5 mm Headphone Output | |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (16.8 VDC) Input |
| Other I/O | 1x 2.5 mm (LANC) Output |
| 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input [Shared with Power, Camera Control] | |
| 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only] |
| Wireless Range | 984.3' / 300 m |
| Frequency Range | 5 GHz |
| Latency | 60 ms |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI (8/10-Bit 4:2:2) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (8/10-Bit 4:2:2) | |
| DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Video Signal Conversion | HDMI to SDI |
| 1080p | |
| SDI to HDMI | |
| 1080p | |
| Audio Format | 8-Channel 24-Bit |
| Input Power | 6.2 to 16.8 VDC |
| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
| Tripod/Accessory Mounting | Top |
| 1x 1/4"-20 Female | |
| Bottom | |
| 1x 1/4"-20 Female | |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 198 x 133 x 39 mm |
| Weight | 580.00 g |
