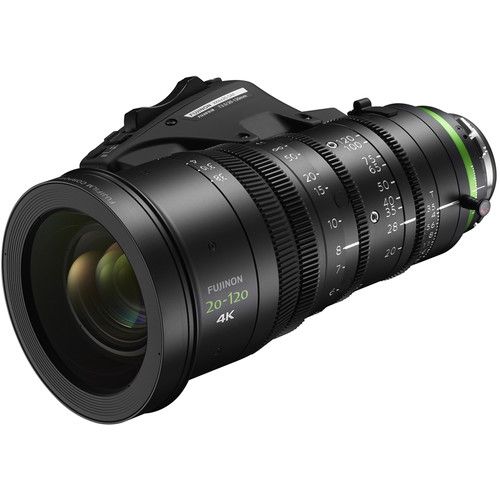

Fujinon XK20-120mm T3.5 Cabrio Premier Lens For PL Mount

18192€


Product Code: 10458

Highlights
  • PL Mount 20-120mm Zoom Lens
  • T3.5 Maximum Aperture with 9 Iris Blades
  • 31.5mm Diameter Image Circle
  • Removable ENG-Style Digital Drive
  • Standard 0.8 Film Pitch Gears
  • Power and Control Connections to Camera
  • LDS and /i Technology Lens Data
  • 200-Degree Focus Rotation
  • Macro Focus Function
  • Flange Focal Distance Adjustment
Available (1-2 months)
1 Year Warranty
The product has been successfully added to the shopping cart



The Fujinon XK20-120mm T3.5 Cabrio Premier Lens is a wide to telephoto zoom lens for Super 35mm cameras in PL mount. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.

The detachable drive unit is an ENG-style handgrip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's interface. A removable lens support is included with the lens.



Focal Length 20 to 120mm
Lens Mount ARRI PL
Format Super35/APS-C
Maximum T-Stop T3.5
Minimum T-Stop T22
Diagonal Angle of View Super35: 63 to 11°
Minimum Focus Distance from Image Plane 2.8' / 85 cm
Iris Blades 9
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Focus Scales Metric, Imperial
Focus Rotation 200°
Zoom Rotation 90°
Zoom Ratio 6x
Dimensions (W x H) 4.5 x 4.5" / 114.3 x 114.3 mm
Length 3.9" / 226.0 mm
Weight 5.3 lb / 2.4 kg

Package Weight 10.0 lb
Box Dimensions (LxWxH) 18.9 x 14.3 x 13.0"
