Imaging
| Lens Mount |
Canon RF |
| Sensor Resolution |
Effective: 24.2 Megapixel |
| Image Sensor |
22.3 x 14.9 mm (APS-C) CMOS |
| Crop Factor |
1.6x |
| Image Stabilization |
None |
| Built-In ND Filter |
None |
| Capture Type |
Stills & Video |
Exposure Control
| Shutter Type |
Electronic Shutter |
| Shutter Speed |
Electronic Shutter
1/8000 Up to 30 Seconds
Electronic Front Curtain Shutter
1/4000 Up to 30 Seconds |
| Bulb/Time Mode |
Bulb Mode, Time Mode |
| ISO Sensitivity |
Photo/Video
100 to 32,000 (Extended: 51,200) |
| Metering Method |
Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation |
-3 to +3 EV (1/3 EV Steps) |
| Metering Range |
-2 to 20 EV |
| White Balance |
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting |
Electronic Shutter
Up to 15 fps for up to 28 Frames (JPEG) / 7 Frames (Raw)
Electronic Shutter
Up to 12 fps for up to 42 Frames (JPEG) / 7 Frames (Raw) |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
Still Image Capture
| Aspect Ratio |
3:2 |
| Image File Format |
C-RAW, HEIF, JPEG, Raw |
Video Capture
| Internal Recording Modes |
H.264/H.265/MPEG-4
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120 fps |
| Broadcast Output |
NTSC/PAL |
| Built-In Microphone Type |
Stereo |
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC |
| Video I/O |
1 x Micro-HDMI Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body |
| Other I/O |
1 x USB-C Input/Output |
| Wireless |
2.4 / 5 GHz Bluetooth 4.2 Control
Wi-Fi |
| Mobile App Compatible |
Yes
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) |
None |

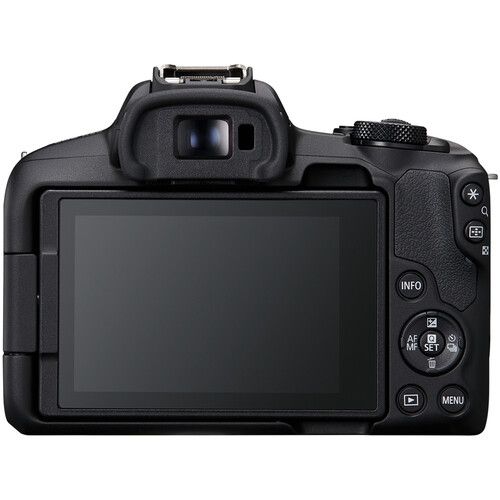

Monitor
| Size |
3" |
| Resolution |
1,620,000 Dot |
| Display Type |
Articulating Touchscreen LCD |
Viewfinder
| Type |
Built-In Electronic (OLED) |
| Size |
0.39" |
| Resolution |
2,360,000 Dot |
| Eye Point |
22 mm |
| Coverage |
100% |
| Magnification |
Approx. 96x |
| Diopter Adjustment |
-3 to +1 |
Focus
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points |
Phase Detection: 4503
Video
Phase Detection: 3713 |
| Autofocus Sensitivity |
-4 to +20 EV |
Flash
| Built-In Flash/Light |
Yes, Flash Only |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3 EV Steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
Intelligent Hot Shoe |
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C |
| Operating Humidity |
0 to 85% (Recommended) |
General
| Battery Type |
1 x LP-E17 Rechargeable Lithium Polymer, 7.2 VDC, 1040 mAh |
| Tripod Mounting Thread |
1 x 1/4"-20 Female (Bottom) |
| Dimensions (W x H x D) |
4.6 x 3.4 x 2.7" / 116.3 x 85.5 x 68.8 mm |
| Weight |
13.2 oz / 375 g (With Battery, Recording Media)
11.6 oz / 328 g (Body Only) |
Packaging Info
| Package Weight |
1.69 lb |
| Box Dimensions (LxWxH) |
7.7 x 7.3 x 5.5" |
Canon RF-S 18-45mm f/4.5-6.3 IS STM Lens Specs
| Focal Length |
18 to 45mm (35mm Equivalent: 29 to 72mm) |
| Maximum Aperture |
f/4.5 to 6.3 |
| Minimum Aperture |
f/32 |
| Lens Mount |
Canon RF |
| Lens Format Coverage |
APS-C |
| Angle of View |
74° 20' to 33° 40' |
| Minimum Focus Distance |
7.9" / 20 cm |
| Maximum Magnification |
0.16x |
| Optical Design |
7 Elements in 7 Groups |
| Diaphragm Blades |
7, Rounded |
| Focus Type |
Autofocus |
| Image Stabilization |
Yes |
| Filter Size |
49 mm (Front) |
| Dimensions (ø x L) |
2.7 x 1.7" / 68.9 x 44.3 mm |
| Weight |
4.6 oz / 130 g |
Packaging Info
| Package Weight |
0.505 lb |
| Box Dimensions (LxWxH) |
5.3 x 4 x 3.7" |

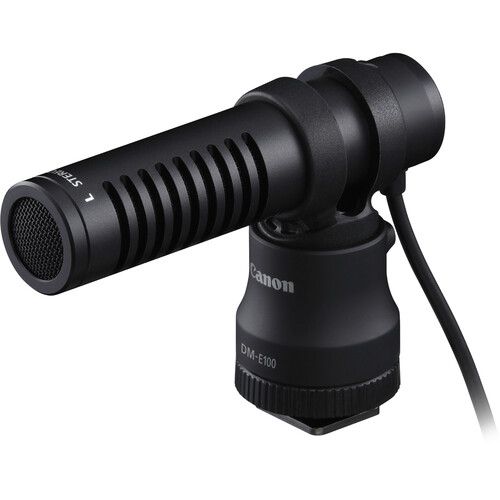

Canon DM-E100 Directional Microphone Specs
Microphone
| Sound Field |
Stereo |
| On-Board Controls |
None |
| Windscreen |
Windsock/Windjammer (Included) |
Connectivity
| Analog Output |
1 x 1/8" / 3.5 mm (on Attached Cable) |
Physical
| Color |
Black |
| Mounting |
Camera/Shoe-Mount |
| Dimensions |
H: 1.2 x W: 2.6 x L: 3.5" / H: 30.48 x W: 66.04 x L: 88.9 mm |
| Weight |
2.26 oz / 64.07 g (Microphone) |
Packaging Info
| Package Weight |
0.37 lb |
| Box Dimensions (LxWxH) |
5.1 x 3.7 x 3.4" |

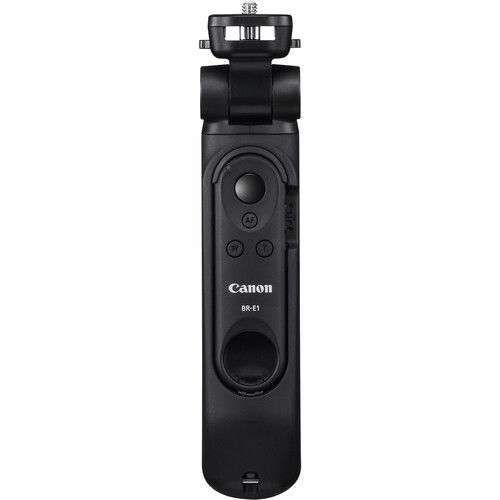

Canon HG-100TBR Tripod Grip Specs
| Accessory Mount |
None |
| Camera Attachment |
1/4"-20 Male |
| Dimensions |
H: 1.5 x W: 7.5 x D: 1.7" / H: 38.10 x W: 190.5 x D: 43.18 mm |
| Weight |
5.76 oz / 163 g |
Packaging Info
| Package Weight |
0.625 lb |
| Box Dimensions (LxWxH) |
9.5 x 3 x 2.75" |
